X7 Tectonic Canopy Tent
The Strongest Canopy Tent In America

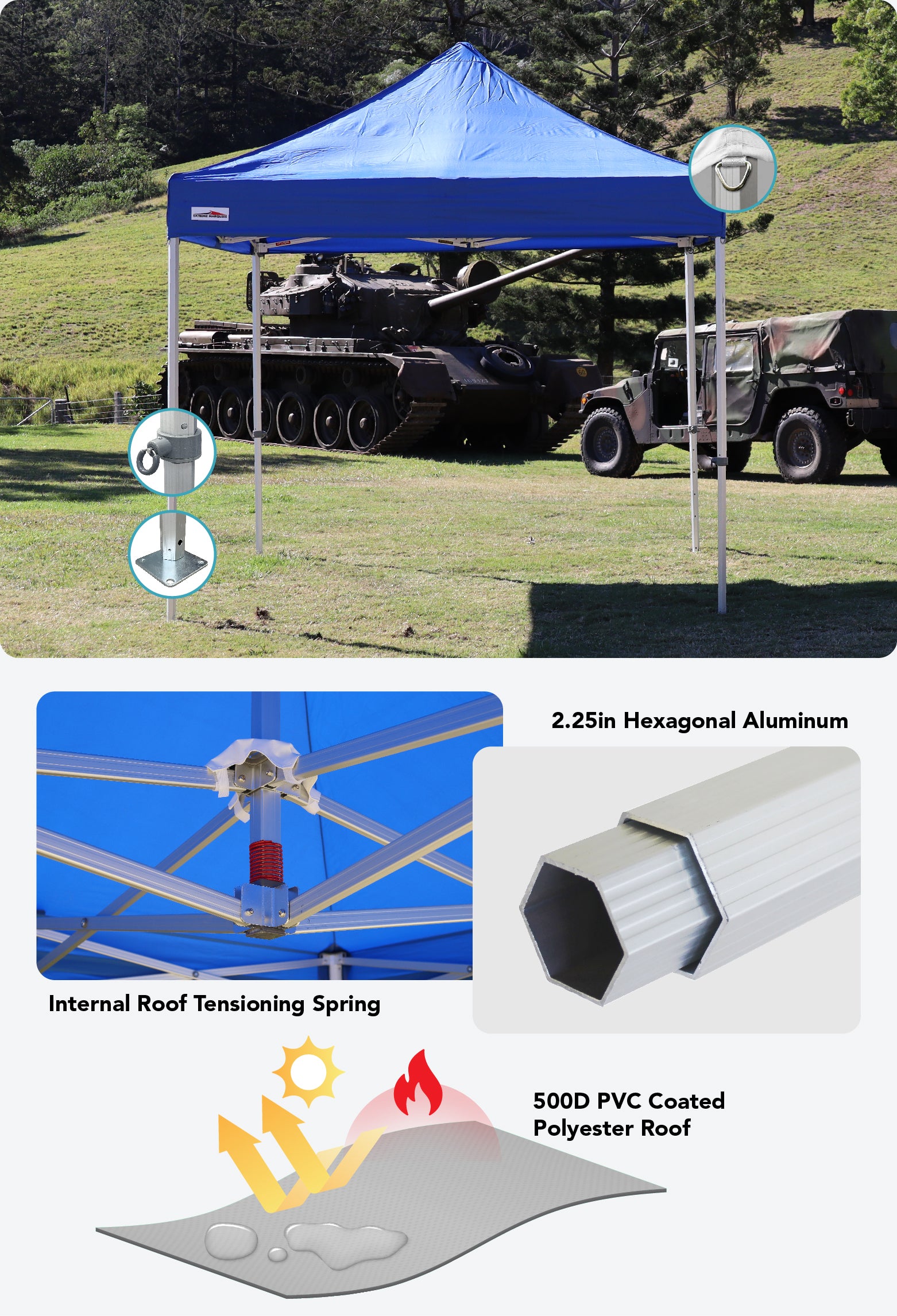

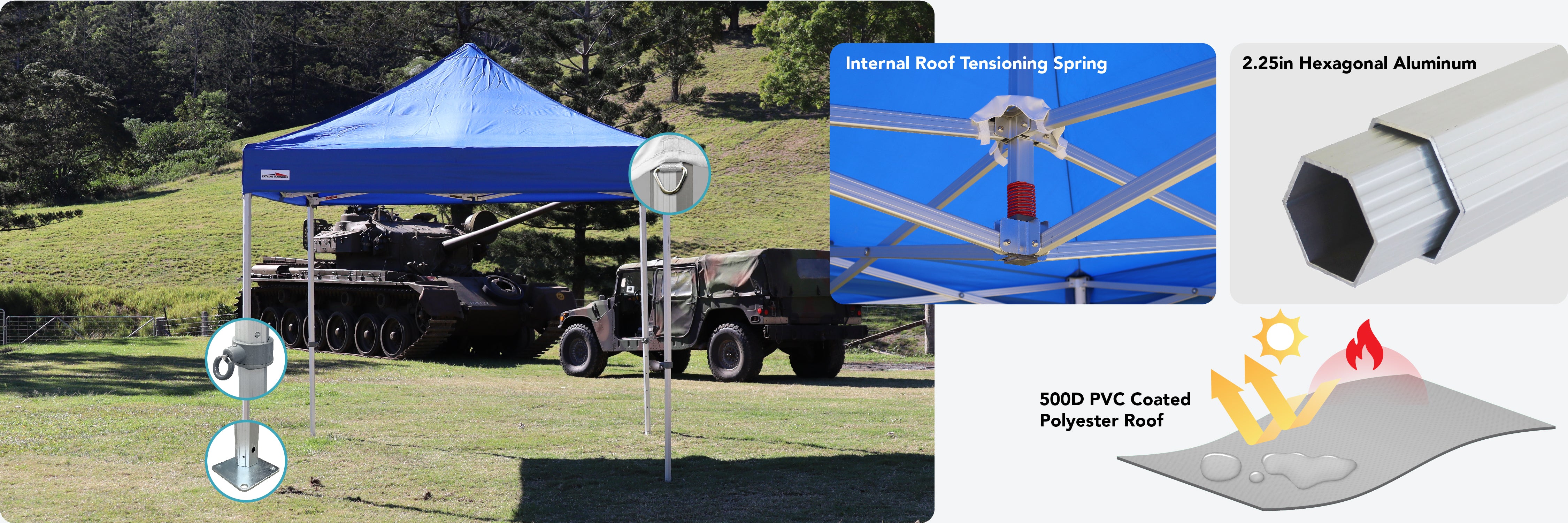

The Extreme Canopy X7 Tectonic is the most heavy duty pop-up canopy on the market with unchallenged strength and durability. This commercial canopy boasts a huge 2 ¼” hexagonal aluminum frame profile and robust 1 ½” inch truss bars. All connectors on the X7 Tectonic are made from extruded aluminum assuring all aspects of this pop-up canopy are heavy duty and durable. The super heavy duty X7 Tectonic comes standard with a heavy duty PVC coated polyester roof and Extreme Canopy’s All-Terrain protective cover. The X7 Tectonic is completed with high-end finishes including galvanized steel feet, plastic coated pull rings and state-of-the-art roof tensioning.
Select Size
X7 Tectonic 10′ x 10′
From $1,075
Print Package 1
$1,325
Print Package 2
$1,375
Print Package 3
$1,375
Print Package 4
$1,425
Strength: Super Heavy Duty
Frame: Aluminum
Connectors: Aluminum
Main Profile: Hexagonal
Leg Profile: 2 ¼” (57 x 50 x 2mm)
Truss Bars: 1 ½” x ¾”(36 x 18mm)
Height: 10′ 10″ (3.30m)
Clearance: 6′ 9″ (2.05m)
Box Size: 64″ x 13″ x 13″ (163 x 33 x 33cm)
Frame Weight: 62lb (28kg)
Poly Roof Weight: 15.5lb (7kg)
X7 Tectonic 10′ x 15′
From $1,345
Print Package 1
$1,675
Print Package 2
$1,750
Print Package 3
$1,750
Print Package 4
$1,825
Strength: Super Heavy Duty
Frame: Aluminum
Connectors: Aluminum
Main Profile: Hexagonal
Leg Profile: 2 ¼” (57 x 50 x 2mm)
Truss Bars: 1 ½” x ¾”(36 x 18mm)
Height: 10′ 10″ (3.30m)
Clearance: 6′ 9″ (2.05m)
Box Size: 64″ x 18″ x 13½″ (163 x 46 x 34cm)
Frame Weight: 79lb (36kg)
Poly Roof Weight: 20lb (9kg)
X7 Tectonic 10′ x 20′
From $1,845
Print Package 1
$2,245
Print Package 2
$2,345
Print Package 3
$2,345
Print Package 4
$2,445
Strength: Super Heavy Duty
Frame: Aluminum
Connectors: Aluminum
Main Profile: Hexagonal
Leg Profile: 2 ¼” (57 x 50 x 2mm)
Truss Bars: 1 ½” x ¾”(36 x 18mm)
Height: 10′ 10″ (3.30m)
Clearance: 6′ 9″ (2.05m)
Box Size: 64″ x 22½″ x 13½″ (163 x 46 x 34cm)
Frame Weight: 108lb (49kg)
Poly Roof Weight: 26.5lb (12kg)
X7 Tectonic 13′ x 13′
From $1,495
Print Package 1
$2,000
Print Package 2
$2,075
Print Package 3
$2,075
Print Package 4
$2,150
Strength: Super Heavy Duty
Frame: Aluminum
Connectors: Aluminum
Main Profile: Hexagonal
Leg Profile: 2 ¼” (57 x 50 x 2mm)
Truss Bars: 1 ½” x ¾”(36 x 18mm)
Height: 12′ 8″ (3.88m)
Clearance: 7′ 1″ (2.15m)
Box Size: 80″ x 13″ x 13″ (203 x 33 x 33cm)
Frame Weight: 73lb (33kg)
Poly Roof Weight: 24lb (11kg)
X7 Tectonic 13′ x 20′
From $2,095
Print Package 1
$2,700
Print Package 2
$2,825
Print Package 3
$2,825
Print Package 4
$2,950
Strength: Super Heavy Duty
Frame: Aluminum
Connectors: Aluminum
Main Profile: Hexagonal
Leg Profile: 2 ¼” (57 x 50 x 2mm)
Truss Bars: 1 ½” x ¾”(36 x 18mm)
Height: 12′ 8″ (3.88m)
Clearance: 7′ 1″ (2.15m)
Box Size: 82″ x 18″ x 13″ (208 x 46 x 33cm)
Frame Weight: 97lb (44kg)
Poly Roof Weight: 31lb (14kg)
X7 Tectonic 13′ x 26′
From $2,295
Print Package 1
$3,050
Print Package 2
$3,200
Print Package 3
$3,200
Print Package 4
$3,350
Strength: Super Heavy Duty
Frame: Aluminum
Connectors: Aluminum
Main Profile: Hexagonal
Leg Profile: 2 ¼” (57 x 50 x 2mm)
Truss Bars: 1 ½” x ¾”(36 x 18mm)
Height: 12′ 8″ (3.88m)
Clearance: 7′ 1″ (2.15m)
Box Size: 82″ x 22″ x 13″ (208 x 57 x 33cm)
Frame Weight: 132lb (60kg)
Poly Roof Weight: 42lb (19kg)
X7 Tectonic 16′ x 16′
FROM $3,295
Print Package 1
$3,750
Print Package 2
$3,900
Print Package 3
$3,900
Print Package 4
$4,050
Strength: Super Heavy Duty
Frame: Aluminum
Connectors: Aluminum
Main Profile: Hexagonal
Leg Profile: 2 ¼” (57 x 50 x 2mm)
Truss Bars: 1 ½” x ¾”(36 x 18mm)
Height: 13′ 5″ (4.09m)
Clearance: 6′ 9″ (2.05m)
Box Size: 68″ x 24 ½″ x 24″ (173 x 62 x 61cm)
Frame Weight: 172lb (78kg)
Roof Weight: 35lb (16kg)
X7 Tectonic 20′ x 20′
From $3,895
Print Package 1
$4,150
Print Package 2
$4,400
Print Package 3
$4,400
Print Package 4
$4,650
Strength: Super Heavy Duty
Frame: Aluminum
Connectors: Aluminum
Main Profile: Hexagonal
Leg Profile: 2 ¼” (57 x 50 x 2mm)
Truss Bars: 1 ½” x ¾”(36 x 18mm)
Height: 11′ 11″ (3.64m)
Clearance: 6′ 9″ (2.05m)
Box Size: 68″ x 24 ½″ x 24″ (173 x 62 x 61cm)
Frame Weight: 218lb (99kg)
Roof Weight: 46lb (21kg)
Custom Printing
We offer custom printing on a wide range of products. Don’t forget to checkout our available print packages!
Print Package 1
1 x Valance Panel Print
Print Package 2
4 x Valance Panel Print
Print Package 3
1 x Valance Panel Print
1 x Roof Panel Print
Print Package 4
4 x Valance Panel print
4 x Roof Panel Print
Print Package 1
1 x Valance Panel Print
Print Package 2
4 x Valance Panel Print
Print Package 3
1 x Valance Panel Print
1 x Roof Panel Print
Print Package 4
4 x Valance Panel print
4 x Roof Panel Print
Sublimination Printing
Sublimation printing, also known as dye sublimation printing involves the use of a digital printer to produce a print on sublimation transfer paper. The sublimation paper is then placed into a heat press with the marquee fabric and exposed to a temperature of 392 degrees Fahrenheit. The artwork is then transferred from the paper to the marquee fabric.
600D PU Coated Polyester, Fabric 245GSM, Sewn with Fabric Binding, Matte print finish.
LED-UV Printing
UV printing is a form of digital printing that uses ultra-violet lights to dry or cure ink as it is printed. As the printer distributes ink on the surface of the fabric, specially designed UV lights follow close behind, “curing” or “drying” the ink instantly.
900D PU Coated Polyester, Ultra-violet light printing, Sewn with fabric binding, Clear protective seal, Print finish semi gloss.
Digital Printing
Large format digital printing refers to method of printing from a digital based image directly to the PVC tent material.
Once the print has dried a hot lacquer is applied to the print surface to seal the print to avoid scratches.
580gsm PVC, Large format digital printing, Heat welded seams, Hot lacquer, Print finish glossy.
Select Fabric
500D PVC Coated Polyester
Available for Plain products
Specifications
100% Polyester with PVC backing
Yarn count: 500D x 500D
Weight: 280 gsm
Colorfastness to light 5-6 En
Features
1 year warranty
Waterproof
Fire, UV & Wind resistant
PVC reinforced Corners
600D PU Coated Polyester
Available for Custom Printed products
Specifications
100% Polyester with PU backing
Yarn count: 600D x 600D
Weight: 245 gsm
Colorfastness to light 5-6 En
Features
1 year warranty
Fire, UV and wind resistant
Waterproof
PVC Reinforced Corners
Black or White reverse fabric
Dye Sublimation Printing
Dye sublimation printing involves the use of a digital printer to produce a print on sublimation transfer paper. The sublimation paper is then placed into a heat press with the fabric and exposed to a temperature of 392 degrees Fahrenheit. The artwork is then transferred from the paper to the fabric. The fabric has the artwork embedded in the material and the design will not scratch from the surface. The fabric has a matte finish, which photographs well and suits indoor and outdoor use.
Wall Options
Accessories
Promotional Products
Ready to find out more?
Videos
WHY BUY A COMMERCIAL CANOPY FROM EXTREME CANOPY?
The X7 Tectonic super heavy duty frame is perfect for outdoor use where weather conditions require a high level of strength. The 2 ¼” super heave duty all aluminum frame has extruded aluminum connectors and 1 ½” truss bars to ensure a long life.
Extreme Canopy’s revolutionary X7 Tectonic tents are highly recommended for commercial use. This range of branded instant canopies perfect for outdoor events, hiring businesses at job fairs, trade fair exhibitors and wedding venues. Our X7 custom instant tents are available with either a plain color roof or a custom printed roof. This custom
printed tent has a robust design which is constructed entirely out of aluminum and grants protection against harsh weather conditions. Side walls, steel weight plates, a clip-on wheel system and sandbags are the various accessories available with the frame of our custom printed pop-up tents. This range also comes in many different sizes which include 10 x 10 feet, 10 x 15 feet, 10 x 20 feet, 13 x 13 feet, and 13 x 26 feet.
IS THE COMMERCIAL X7 TECTONIC CANOPY TENT RIGHT FOR YOU?
The X7 Tectonic Range is very popular at promotional events such as conferences and car shows. With the option of a full custom printed roof and custom branded walls, the X7 pop-up canopy is popular for business advertising. If you have an event where your canopy will be left up for multiple days or if you require a durable canopy tent that will last the test of time, then the X7 is right for you.
The X7 Tectonic Range, available exclusively at Extreme Canopy, now offers sturdy, innovative and heavy-duty branded canopies. With robust reinforced, 2 ¼ inch wide, aluminum, the sheer strength and durability of this frame is incomparable to any other branded tent. Aiding in the strength of our X7 logo tents are strong steel feet, aluminum connectors and oversized truss bars. As a result of this strength, the Tectonic Range at Extreme Canopy has the ability to withstand extremely harsh weather conditions and comes with a 10-year manufacturer’s warranty!
CHOOSING EXTREME CANOPY FOR YOUR COMMERCIAL CANOPY
When you want the ultimate in performance and lasting durability for your commercial canopy, there is no better choice than an Extreme Canopy product. Our commercial canopy solutions in the X7 Tectonic Range feature superior materials — including aluminum frames and heavy-duty polyester fabric sides — as well as best-in-class craftsmanship to ensure performance that won’t quit. With a host of sizes, packages and custom printing options to choose from in our X7 Tectonic Range, our trusted manufacturers help you build the perfect commercial canopy for your needs. Contact us today for a quote on this ground-breaking range of branded pop-up tents.
To suit your needs, these revolutionary pop-up tents are available in an extensive range of sizes with a large range of printing options. Our printed package 1 on our Tectonic Range offers simple yet appealing printing on the front valance of the canopy. This is a great, affordable choice for customers who do not require extensive branding and would prefer the less-expensive option. Printed package 2 on our Tectonic Range offers branding on all 4 valance panels of the pop-up tent. This results in your logo being able to be seen from all 4 sides of your custom tent for a reasonable cost. Printed package 3 on our Tectonic Range offers a branded canopy with printing on one valance and one panel. Hence, if you only require branding on one side of your pop-up canopy, then this package is great for you. Finally, printed package 4, our most extensive and sophisticated package, offers full roof printing on your logo tent. That is, you can have all 4 valances and all 4 panels of your Tectonic Range customized to your liking. This branding package provides a great advertising opportunity for your business. Thus, the X7 Tectonic Range is revolutionary, robust and strong.
