50' Width

The Crest Tent 50' Wide Clear Span A-Frame is a high-capacity event structure designed for large-scale functions. Featuring a sturdy aluminum frame and a clear-span design, it offers an open, unobstructed interior with excellent weather resistance. Perfect for corporate gatherings, trade shows, and weddings. Enjoy free shipping and extended warranties. Elevate your event today!

Specification Sheet >    Instruction PDF >   Product Comparison >   PVC Fire Retardant Certification >

Clear Span Width	50' (15m)
Eave Height	10′ (3m)
Frame Profile	166 x 88 x 3mm (4-channel)
Frame Material	Hard pressed extruded aluminum 6061/T6 (13HW)
Eave Connectors	Hot-dip galvanized steel insert
Roof Fabric	650GSM White PVC / 950GSM Clear PVC
Frame Warranty	Frame 10 Years
Roof Warranty	White PVC 5 Years / Clear PVC 2 Years





Capacity Chart

Size	Area (sqm)	Cocktail Standing	Theatre Seating	Seating Trestle Table	Seating Round Table

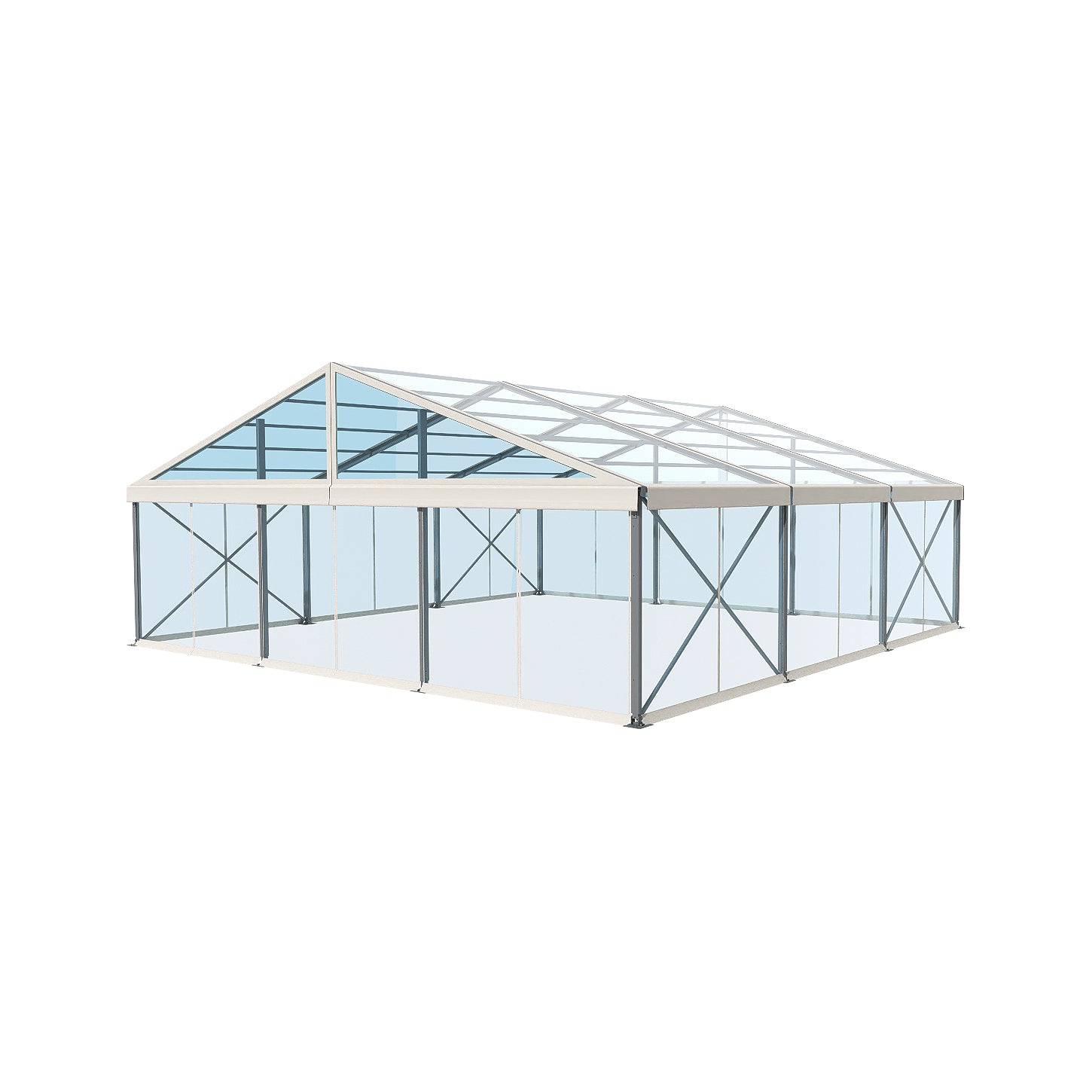

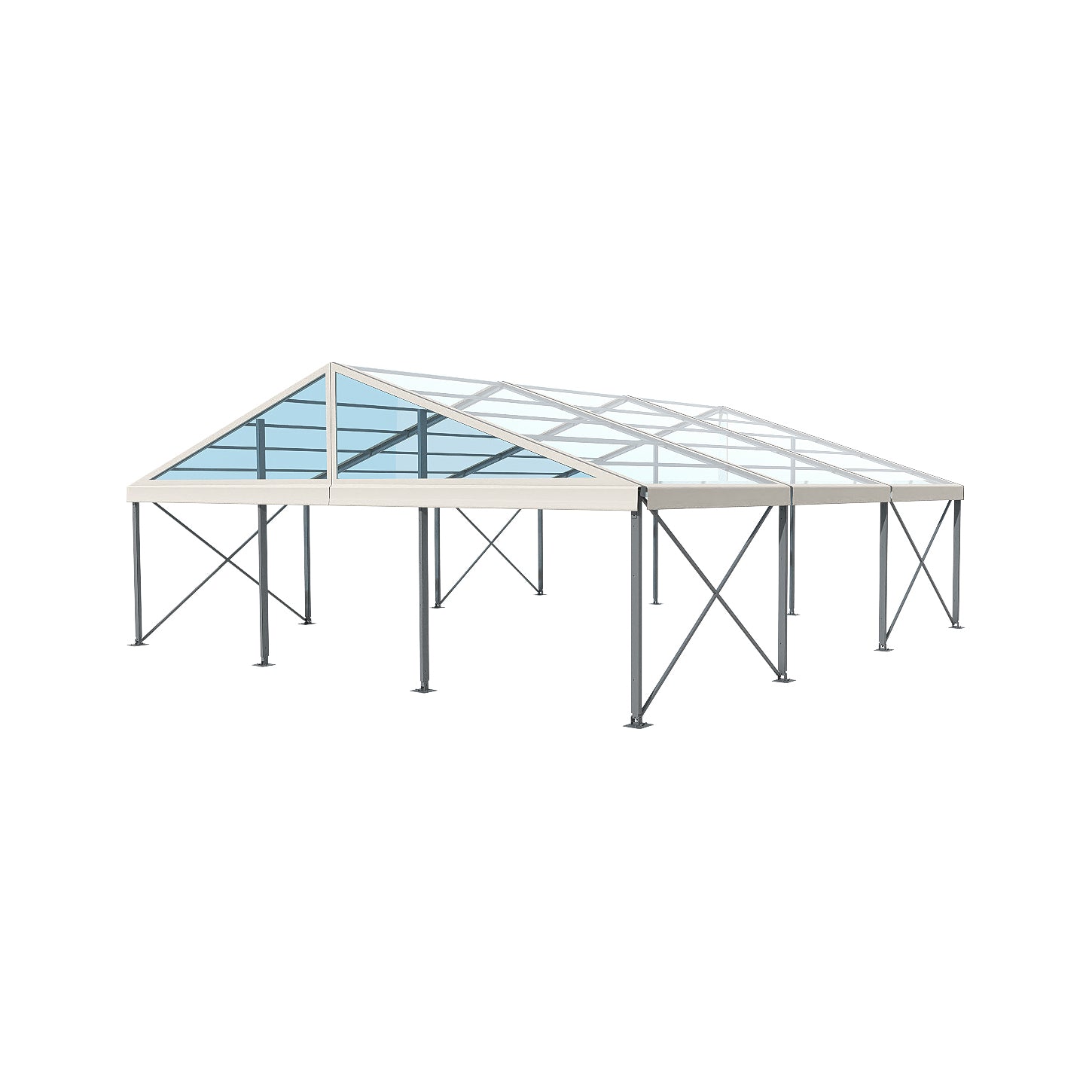

50' x 50'	225	310	150	300	250-300

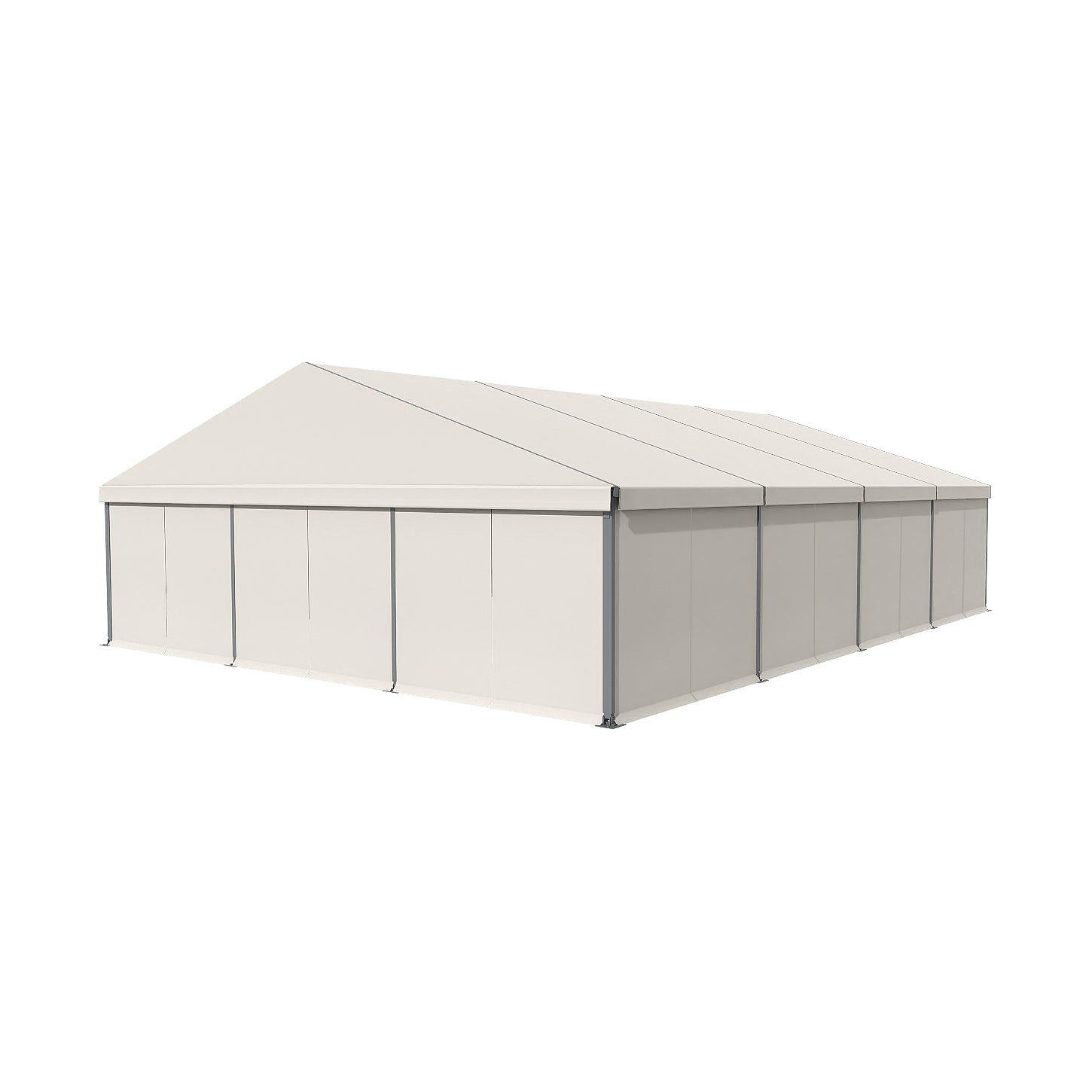

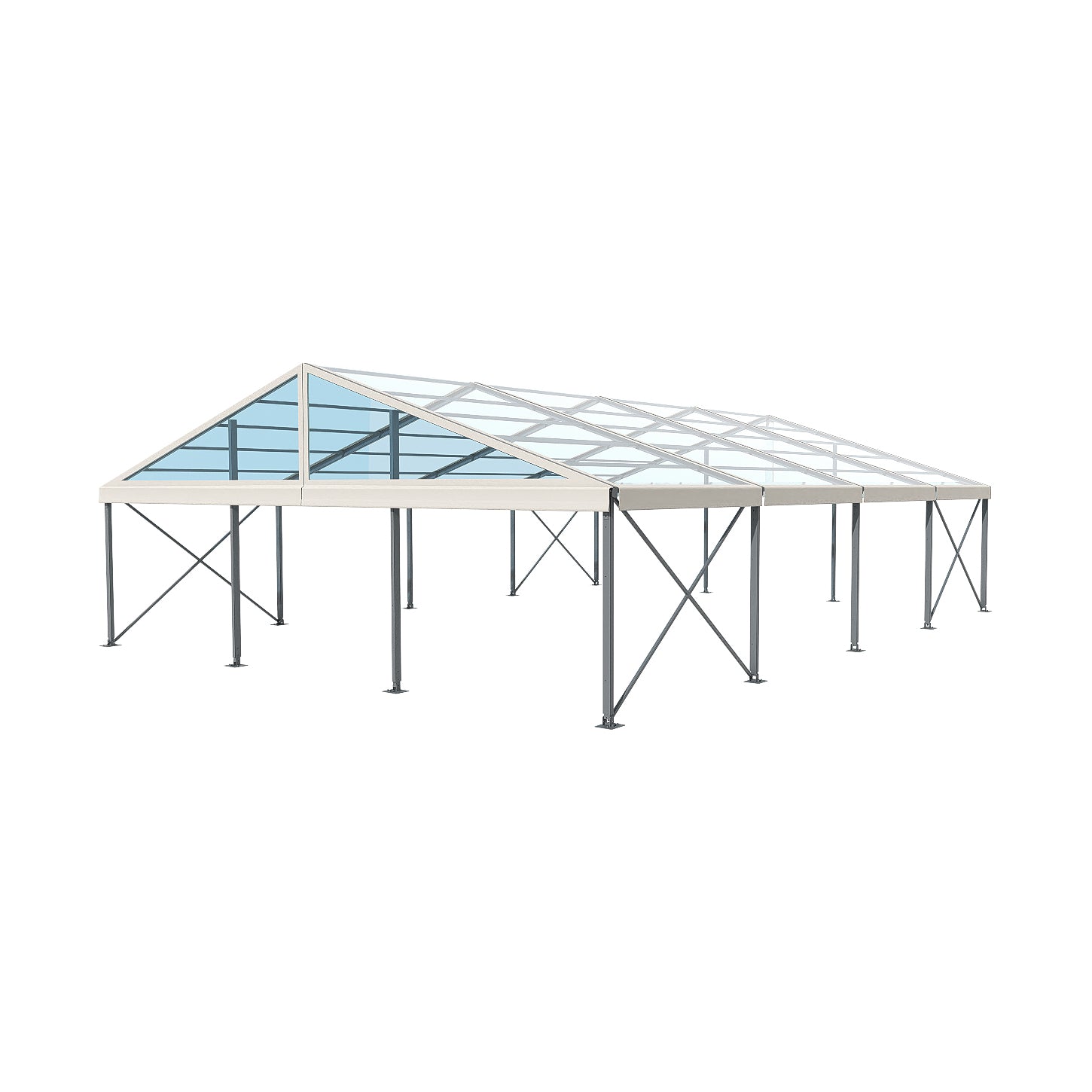

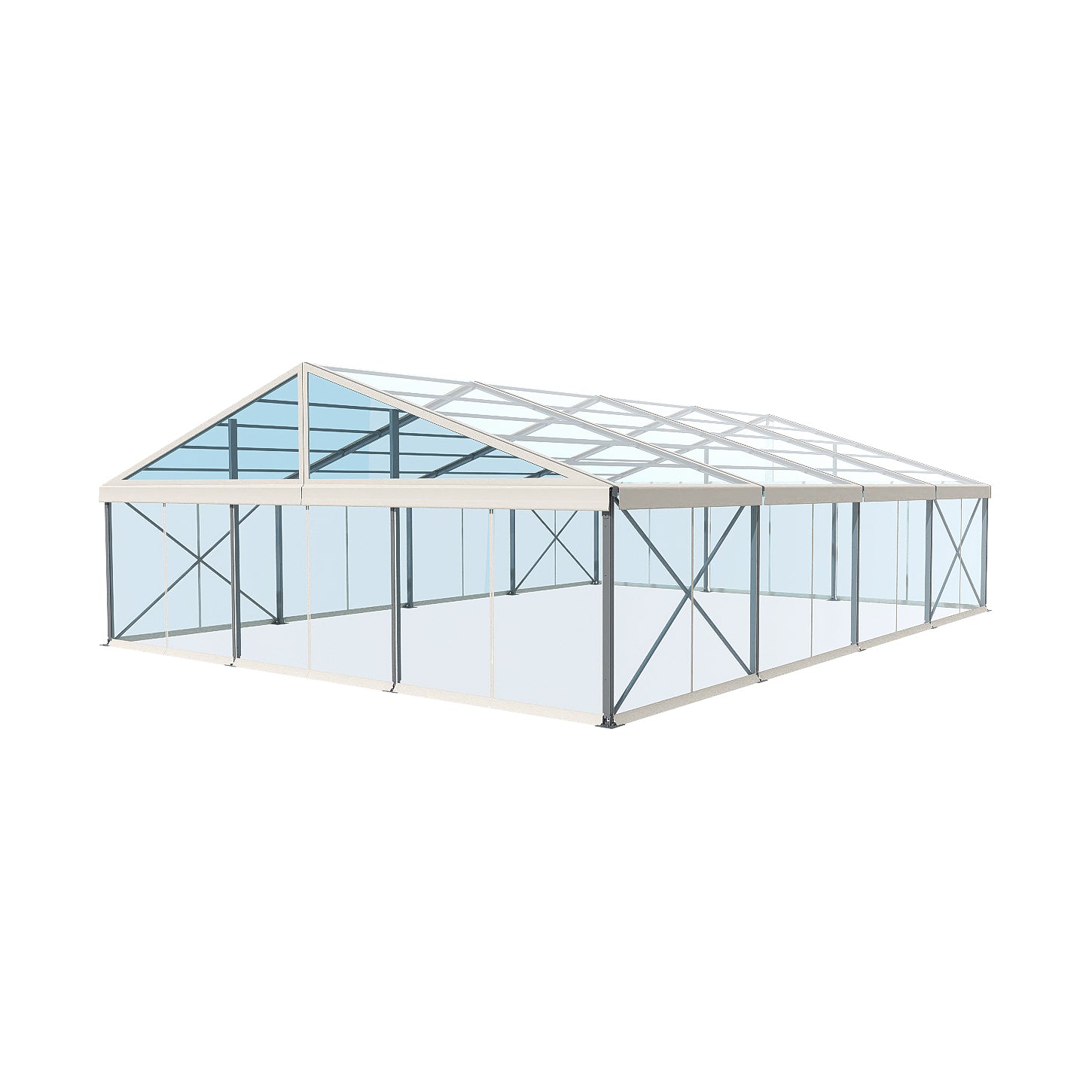

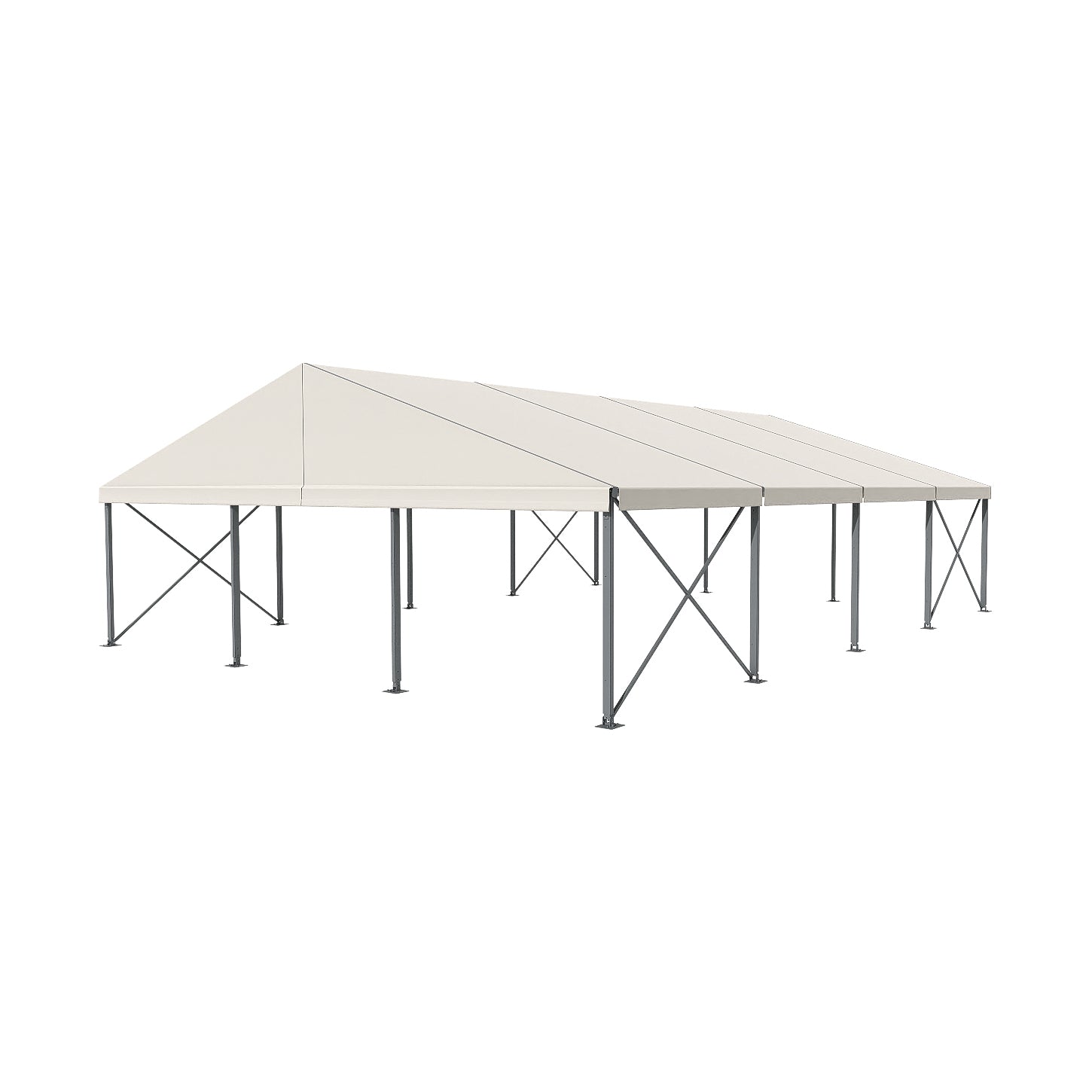

50' x 66'	297	415	200	395	320-395

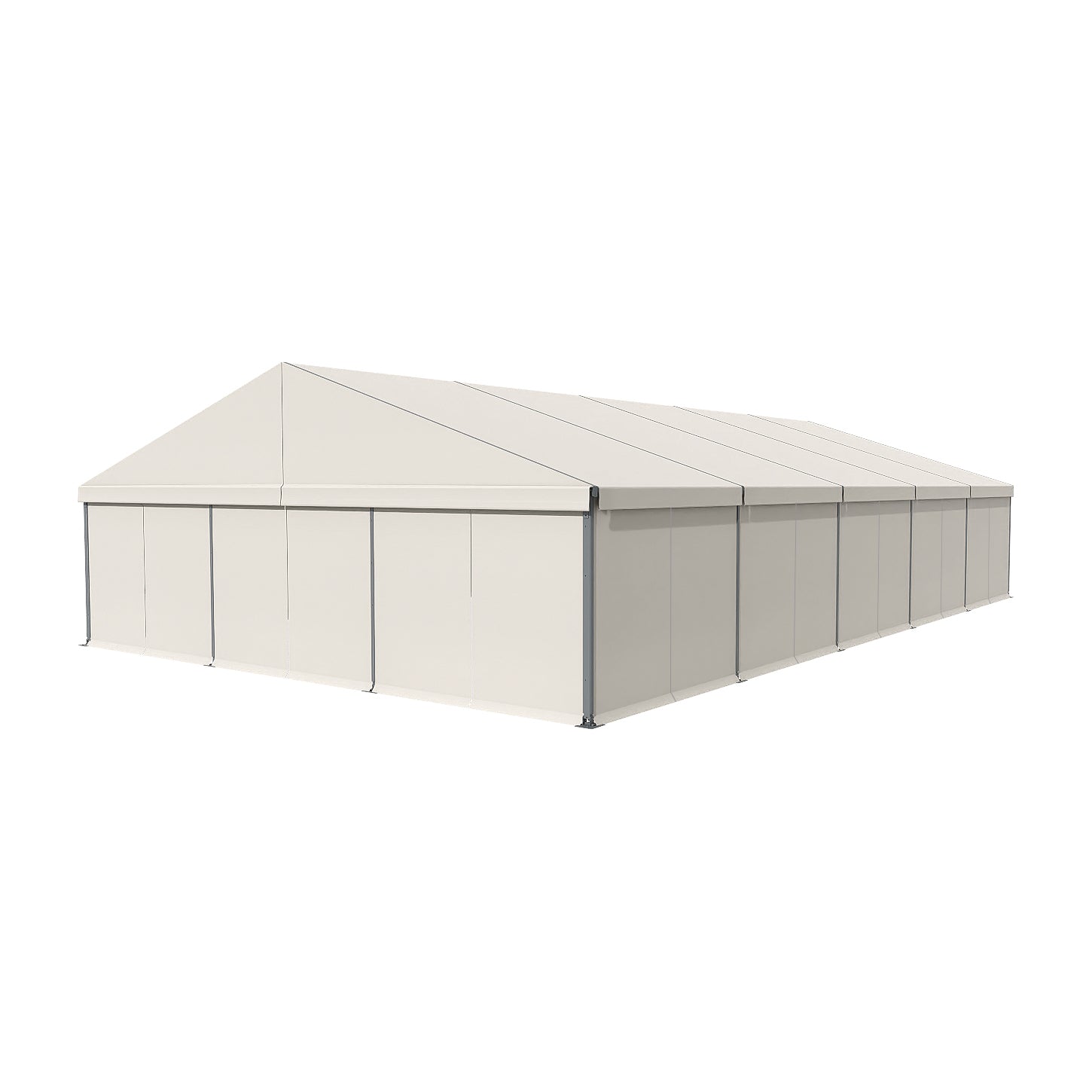

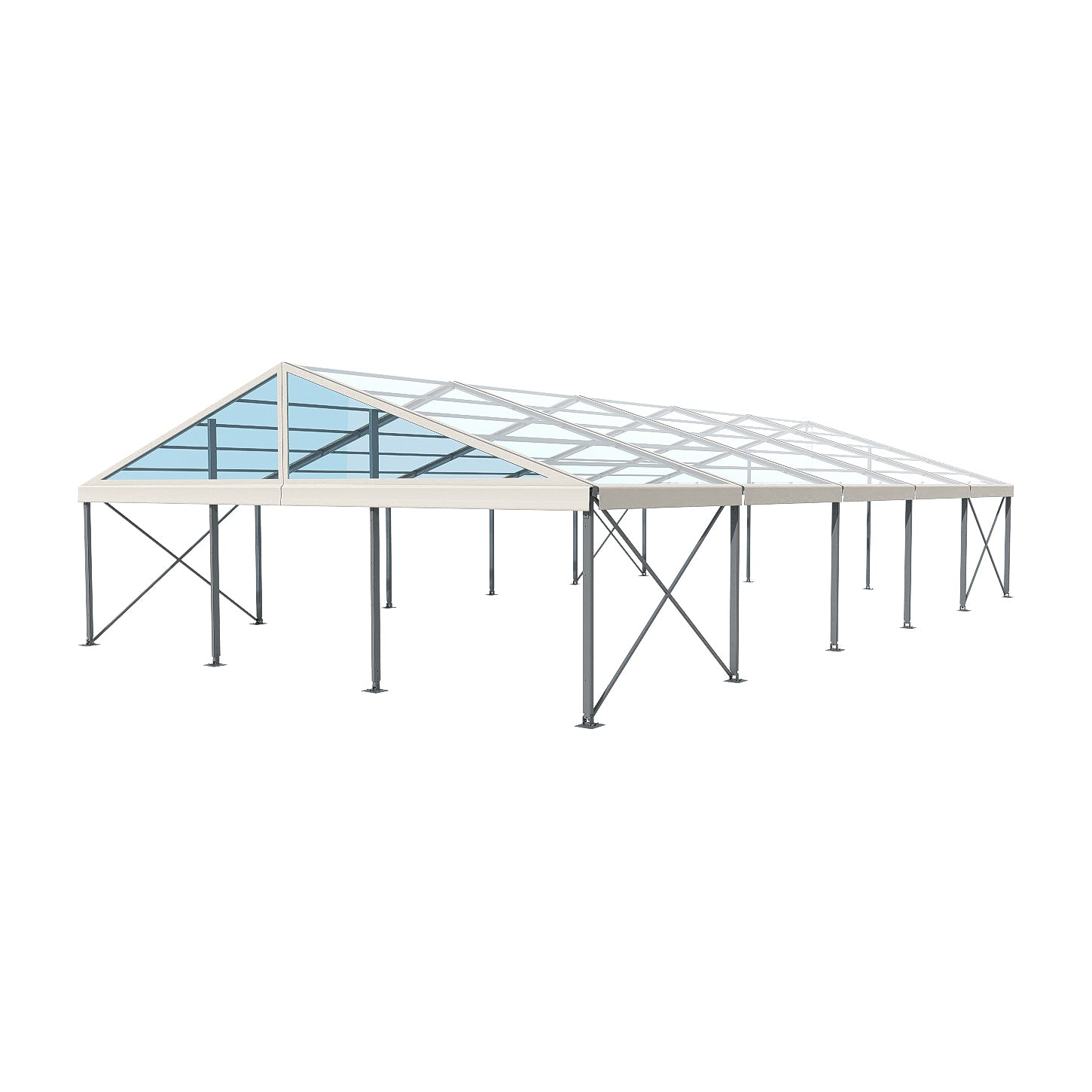

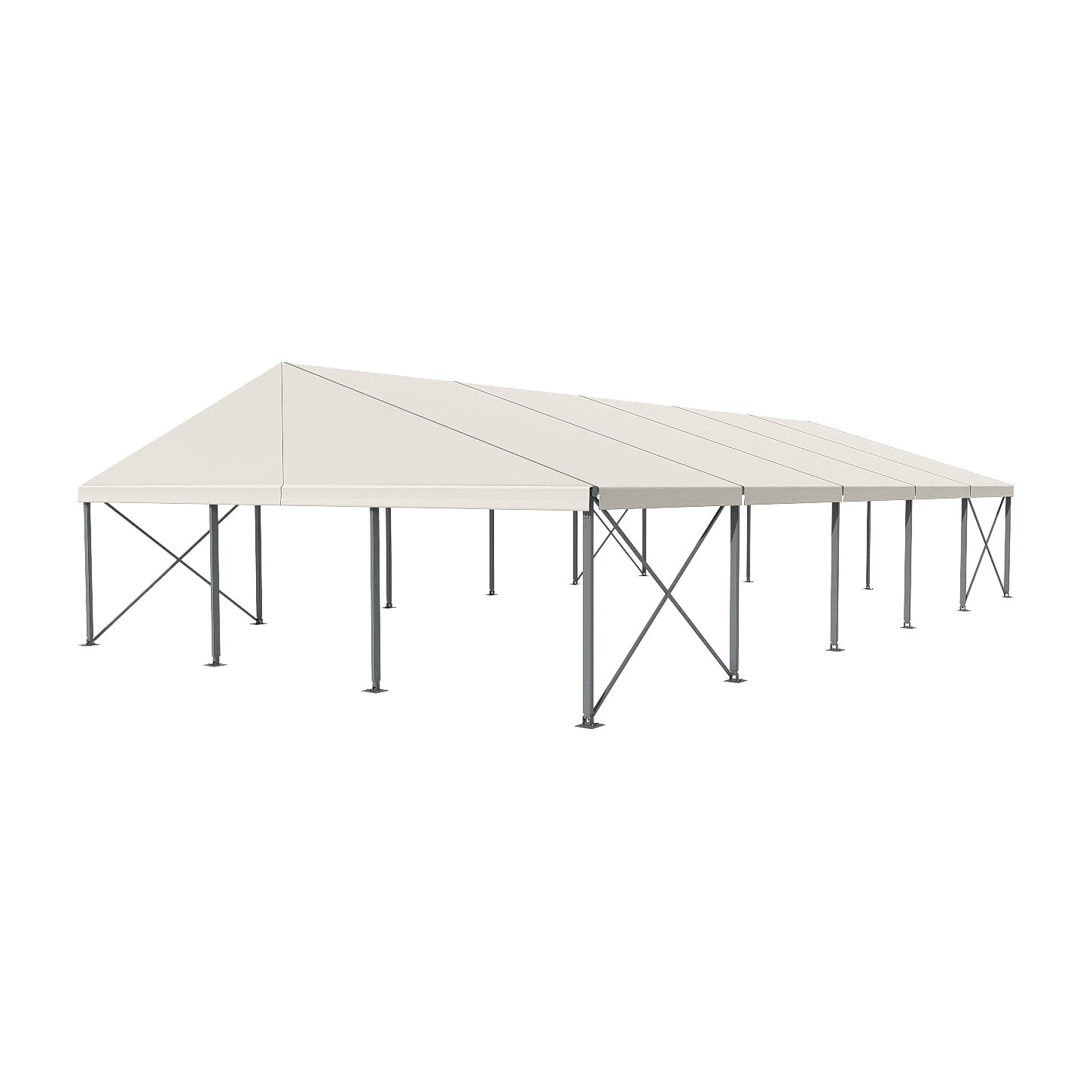

50' x 82'	369	515	250	490	400-490

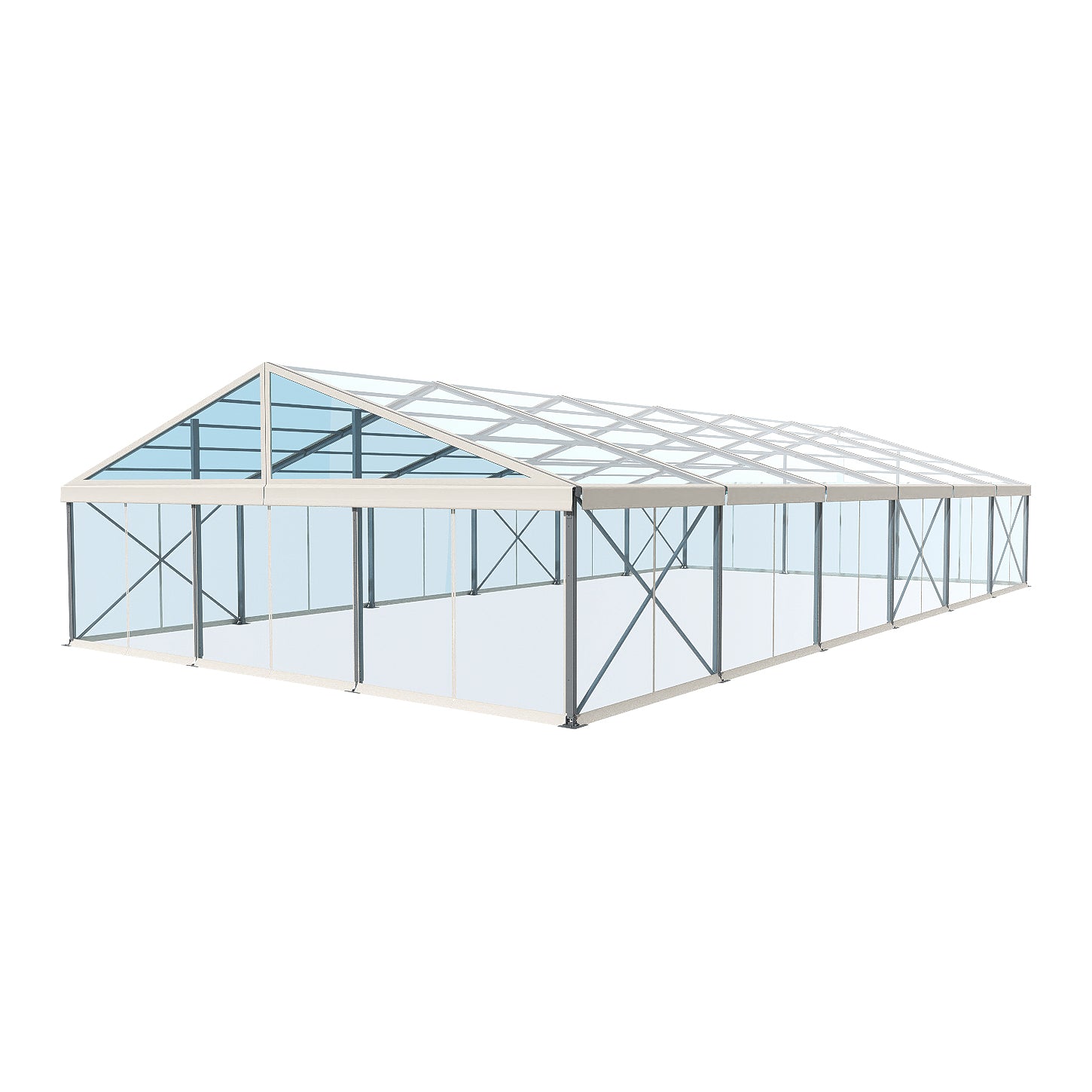

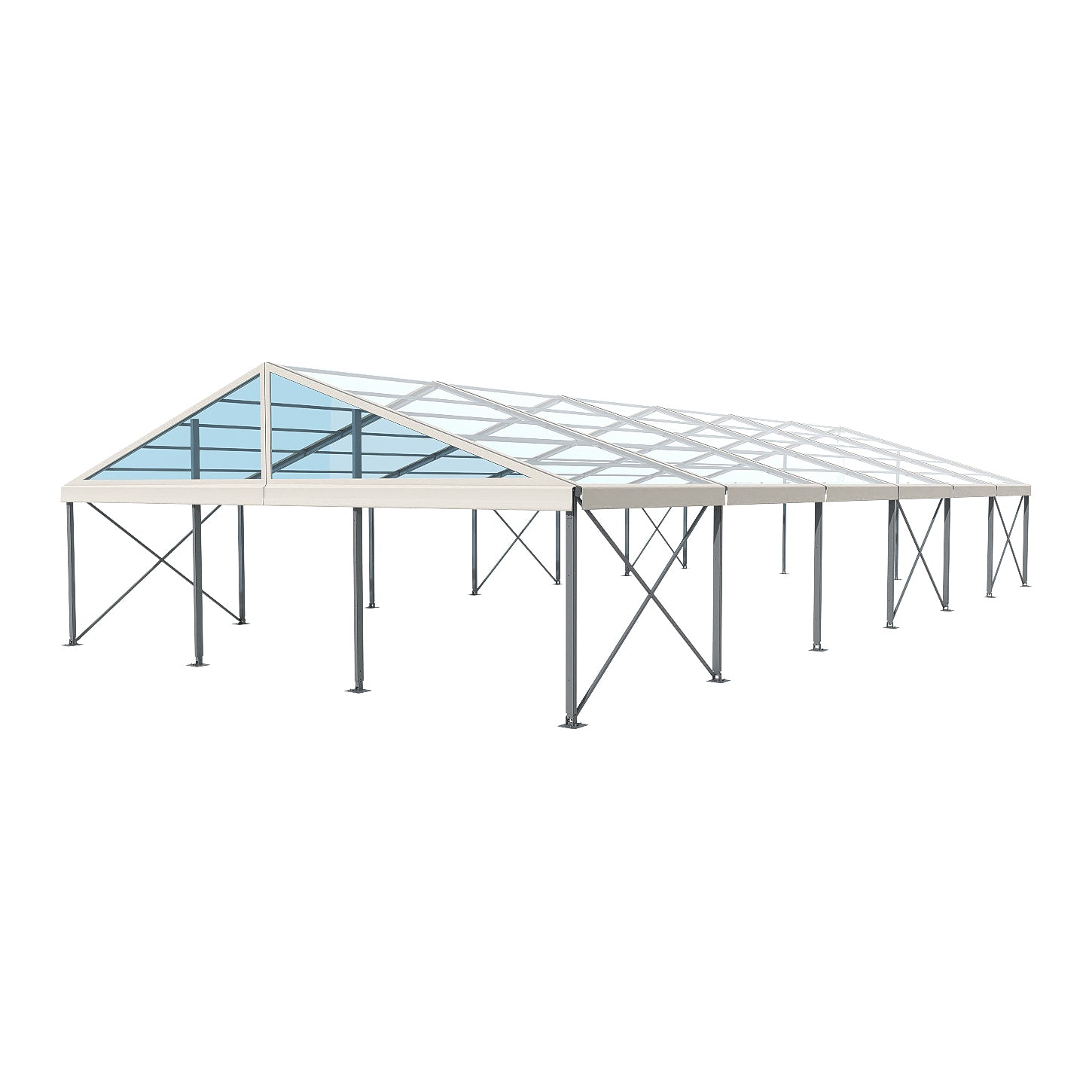

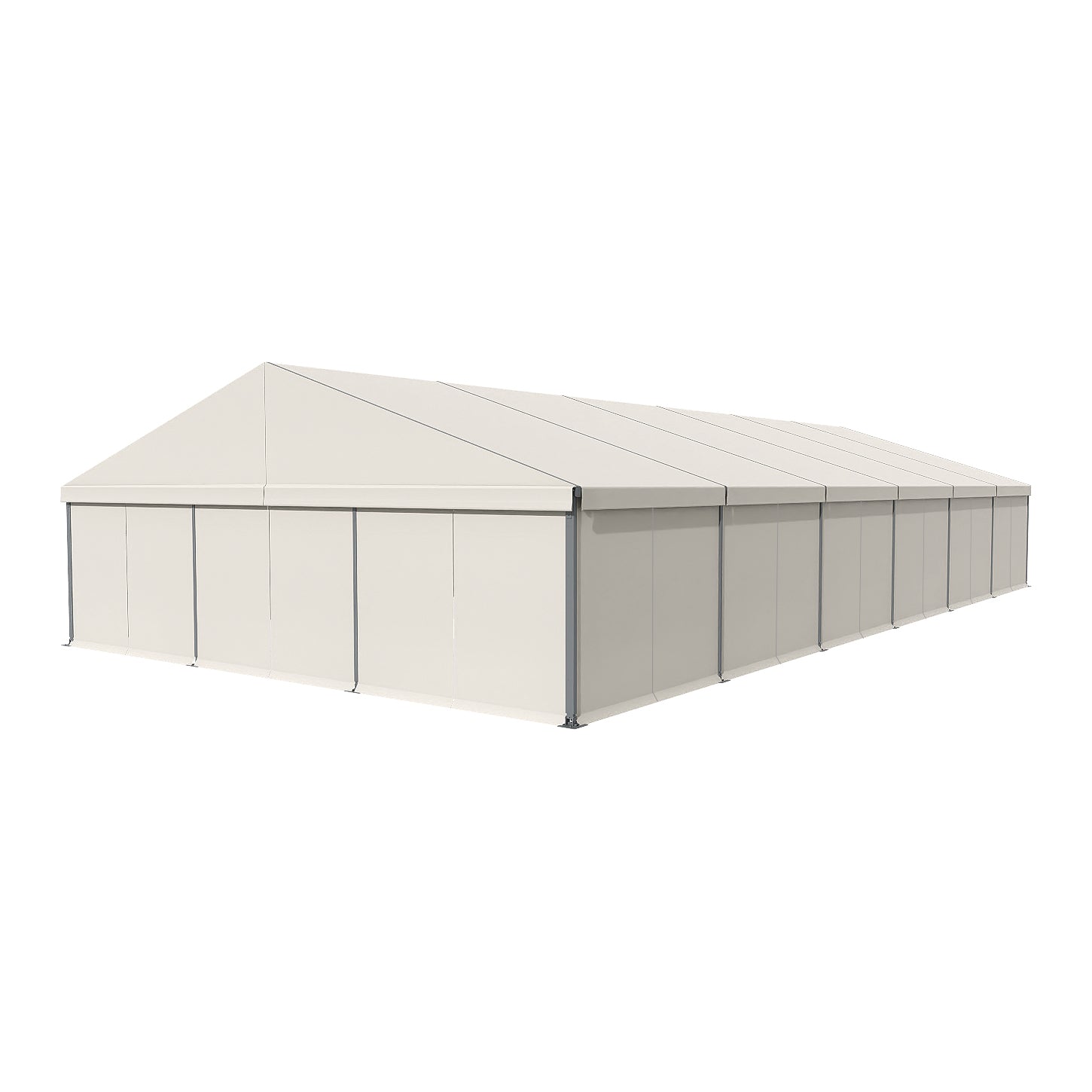

50' x 100'	465	625	300	600	500-600

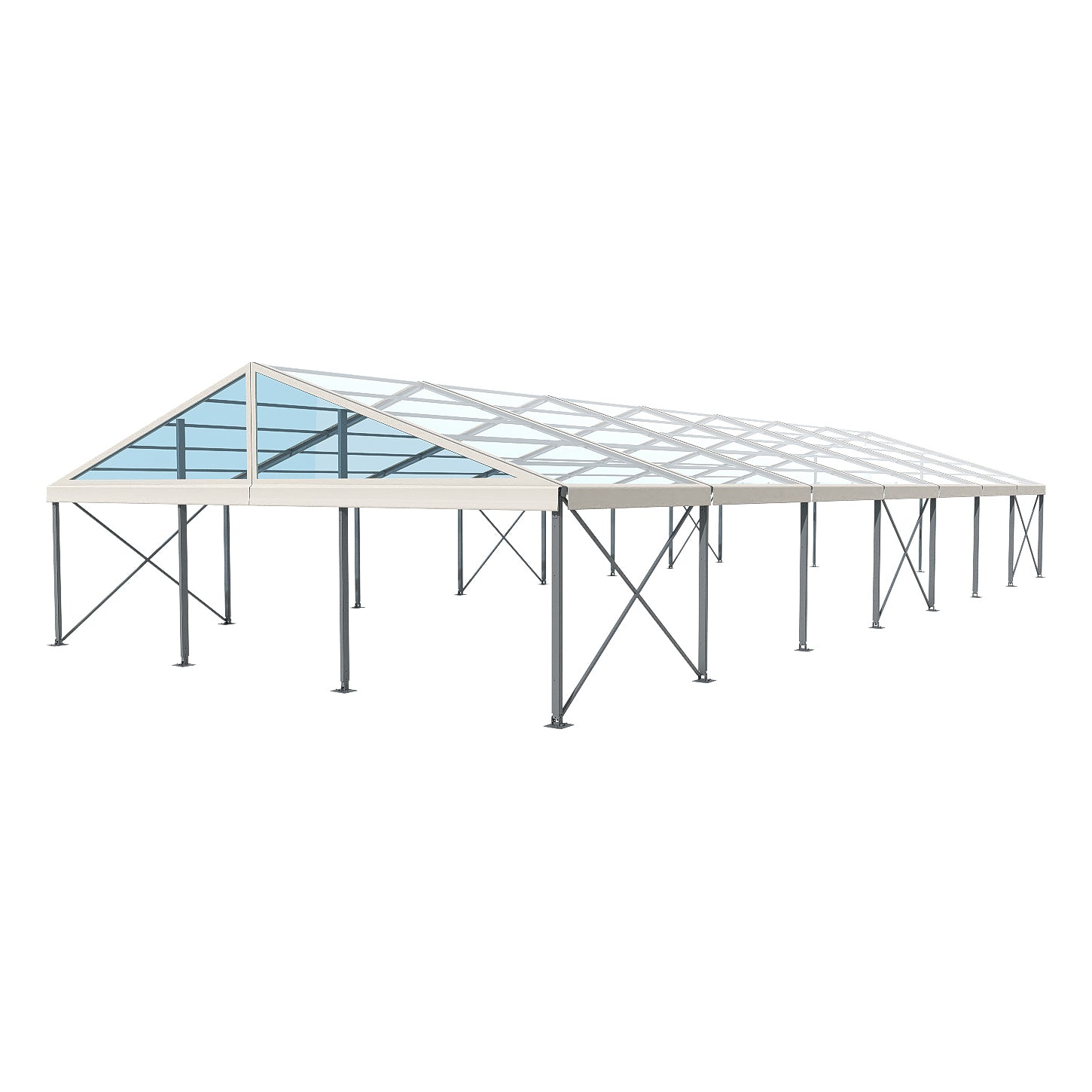

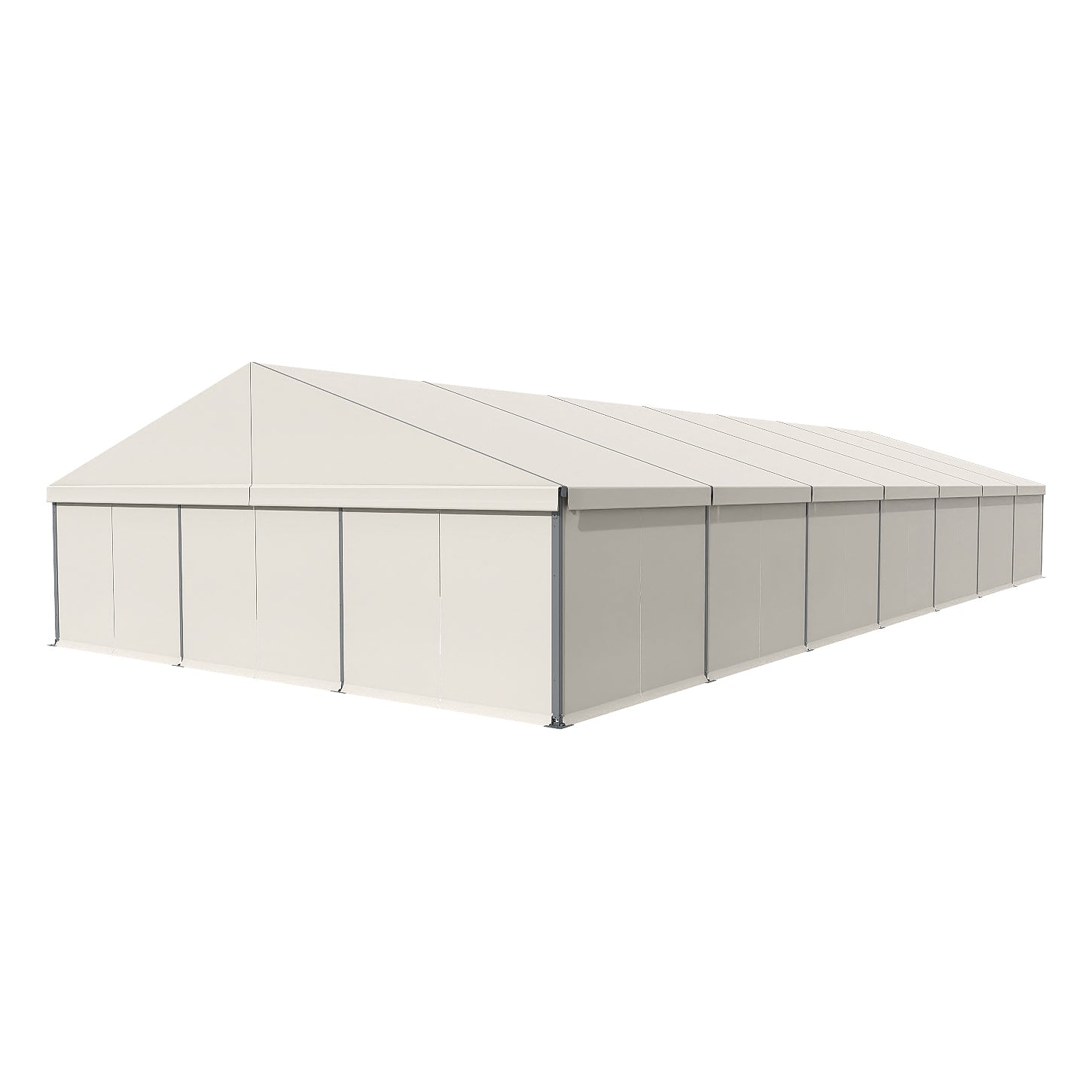

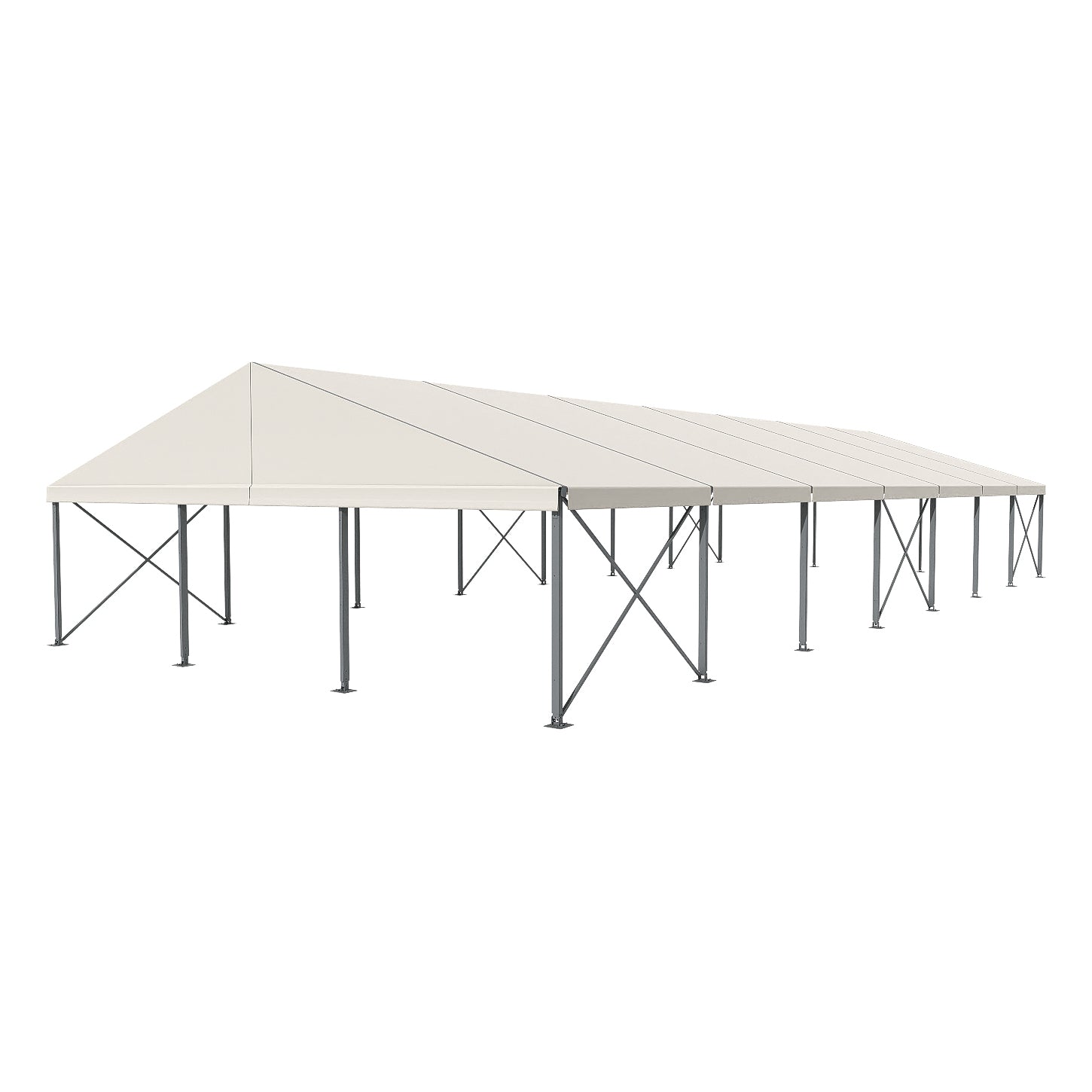

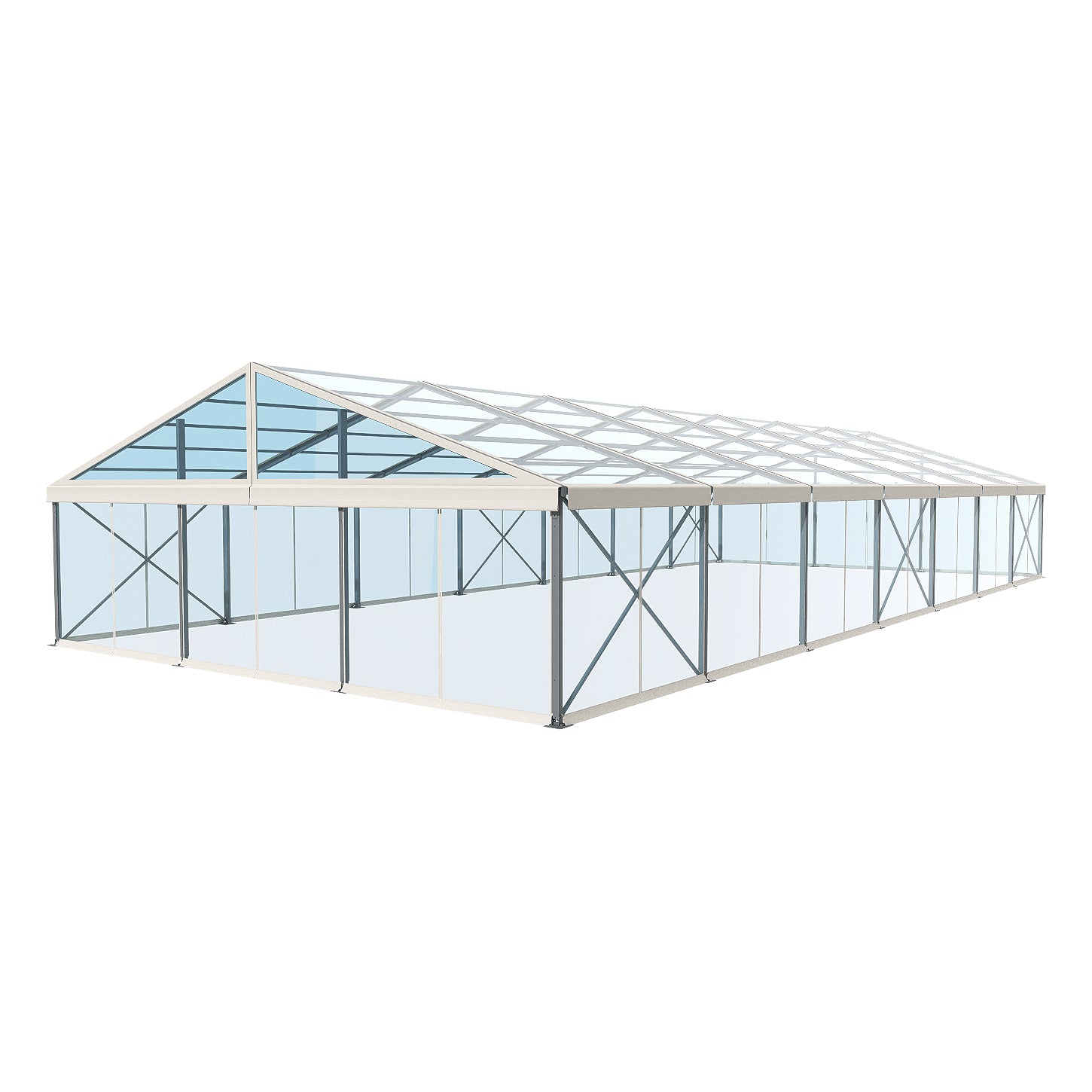

50' x 115'	535	715	350	690	580-960

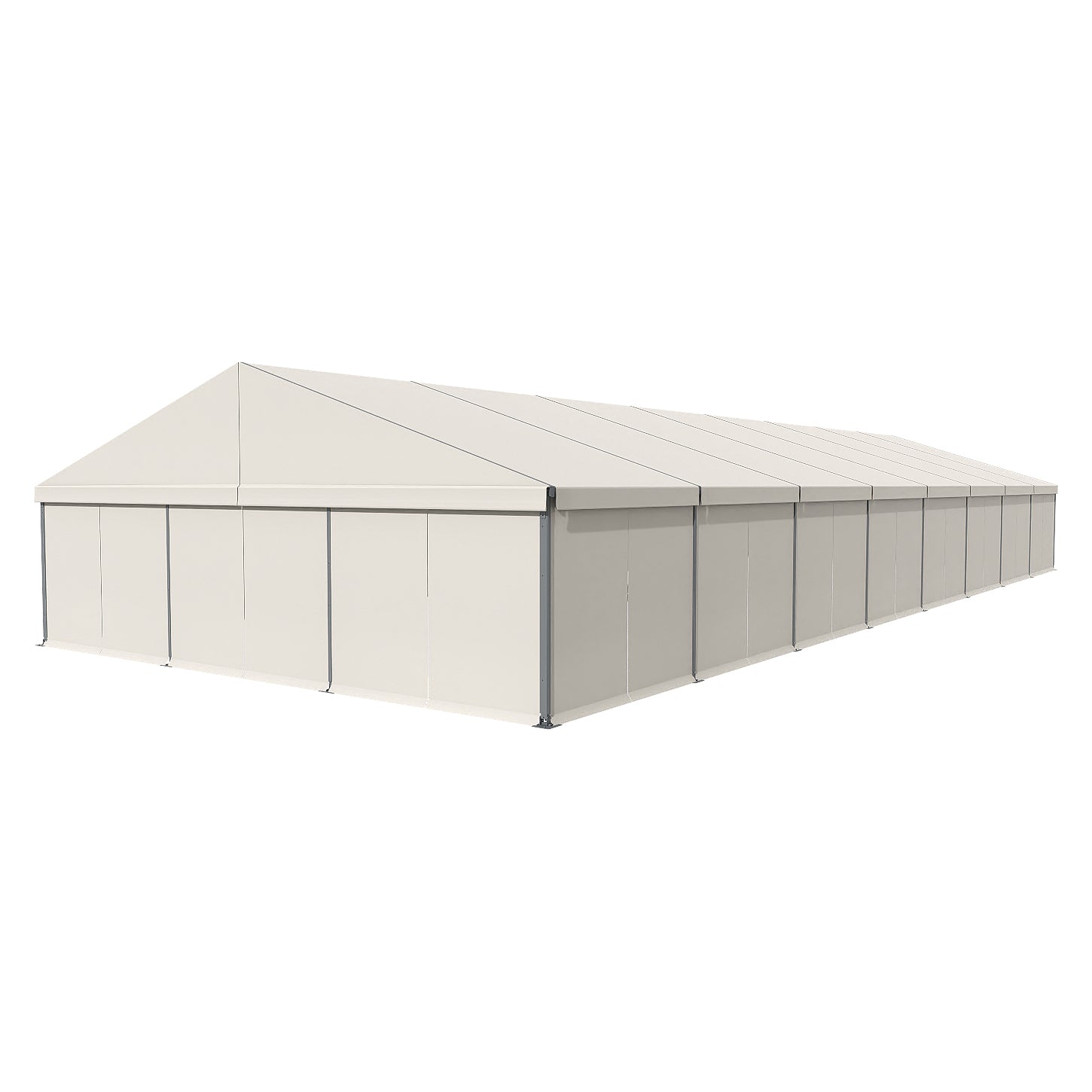

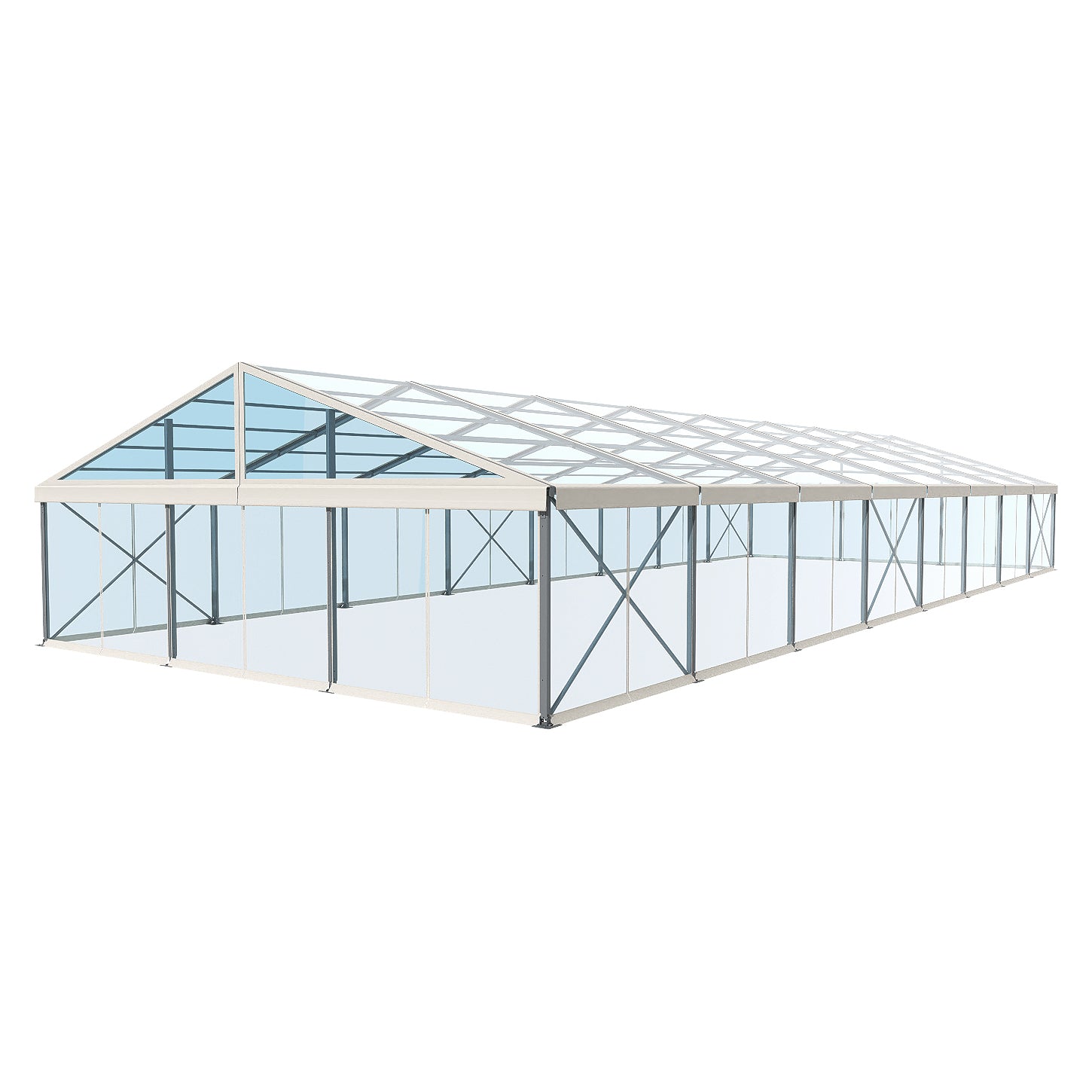

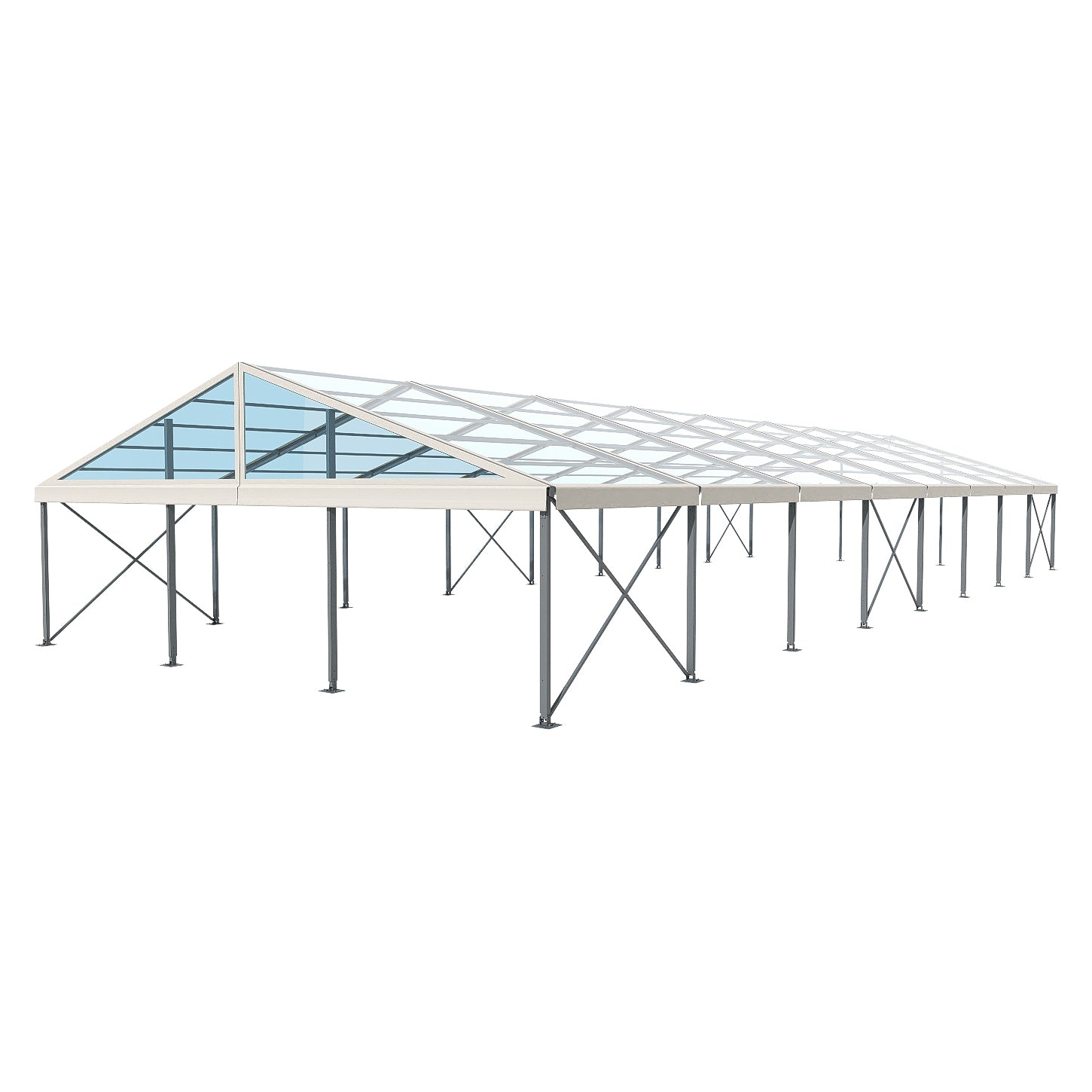

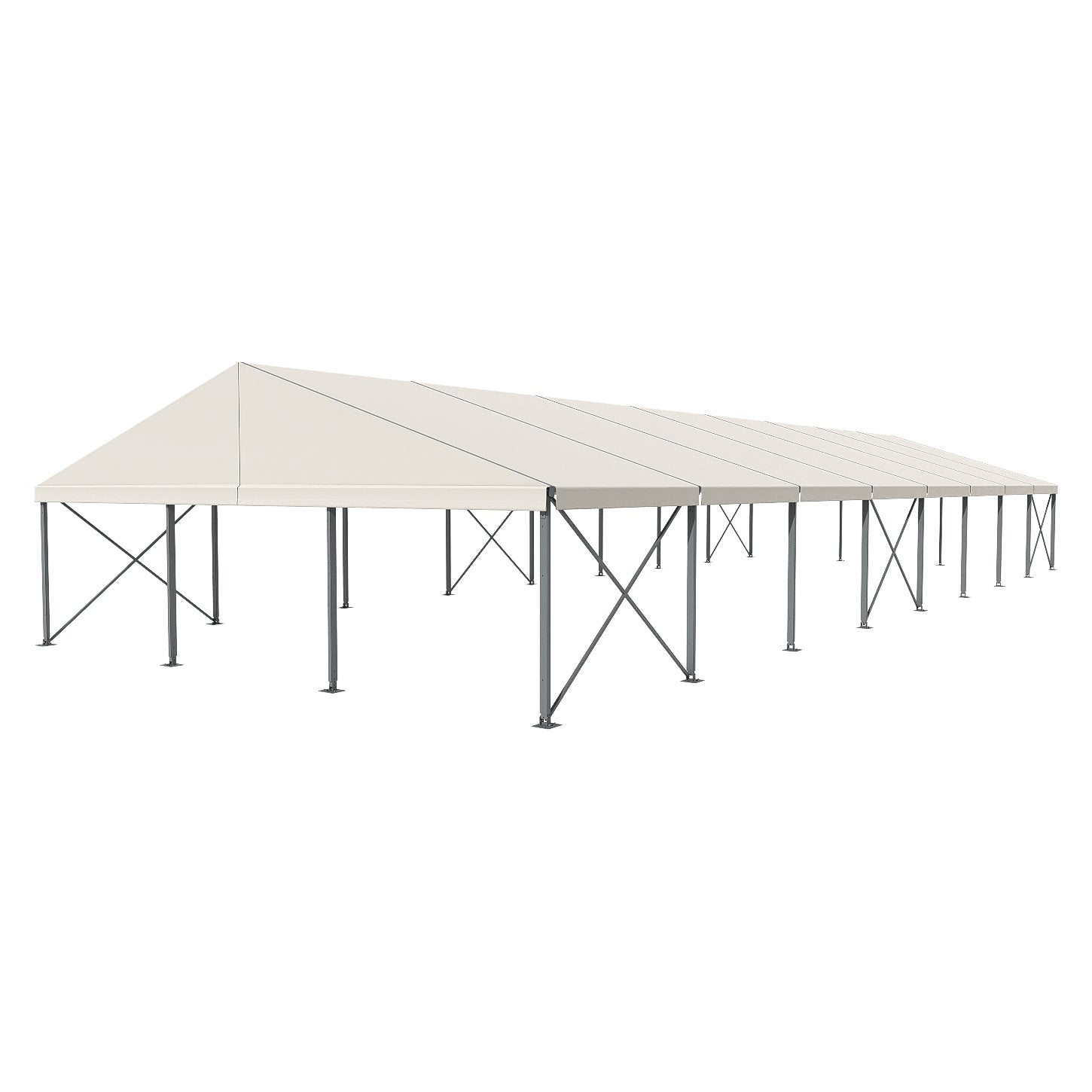

50' x 131'	610	820	400	785	660-785

This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.



Theatre seating
Includes a 3’3” (1m) centre aisle and a 10ft (3m) section at the front for presentation/ceremony

Trestle tables
7’8” (2.4m) Trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables

Round tables
5’6” (1.8m) Round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.



Add-on accessories available (contact us for pricing)



Usage & Engineering Certifications

Crest Tents are designed as temporary or semi-permanent structures. Extreme Canopy Crest Tents meet wind speed requirements for most (though not all) U.S. locations for semi-permanent installations.

As building codes and regulations vary by site, compliance verification is the customer’s responsibility. Upon request, Extreme Canopy can engage an engineer for site-specific analysis.
If no engineering review is requested prior to purchase, Extreme Canopy cannot guarantee compliance with local regulations.

Note: Snow loading is not included in engineering analyses. It is the customer’s responsibility to prevent snow or ice accumulation on the tent.
