20ft x 20ft Custom Canopy Packages

Available Frames

folding grid display x7

Print Package 1

$4,150

Print Package 2

$4,400

Print Package 3

$4,400

Print Package 4

$4,650

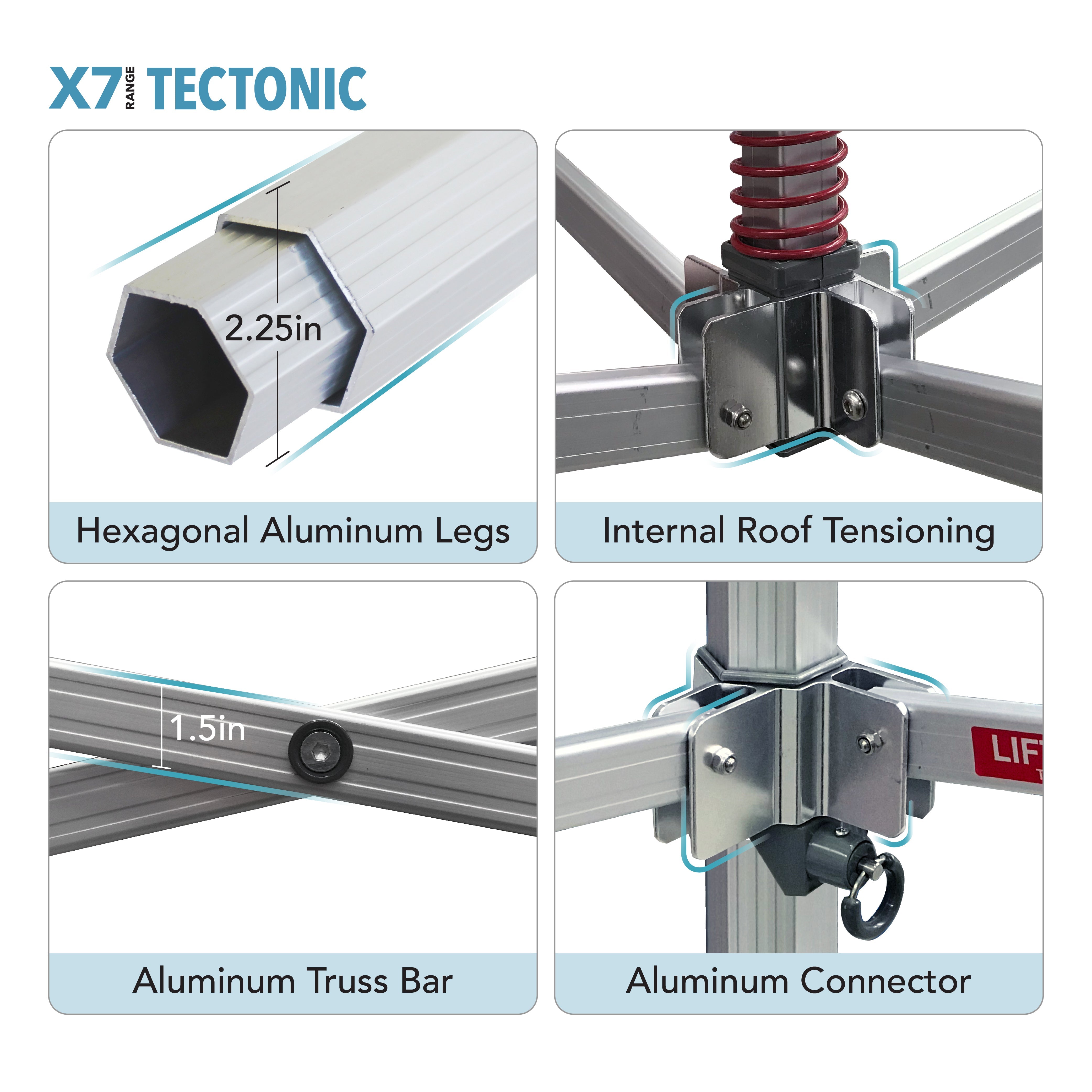

Specifications: Aluminum Frame  |  Aluminum Connectors  |  Hexagonal Main Profile  |  Leg Profile 2 ¼” (57 x 50 x 2mm)  |  Truss Bars 1″ x ½” (36 x 18mm)  |  Height 11′ 11″ (3.64m)  |  Clearance 6′ 9″ (2.05m)  |  Box Size 68″ x 24″ x 24″ (173 x 62 x 61cm)  |  Frame Weight 220lb (100kg)  |  Roof Weight 46lb (21kg)

Fabric: Plain 500D PVC Coated Polyester  |  Sublimination Print 600D PU Coated Polyester  |  Standard Color Chart  |  Premium Color Chart  |  Fabric Comparison Information

Warranty: Frame 10 Years  |  Polyester Fabric Plain & Printed 1 Year  |  PVC Plain Fabric 5 Years  |  PVC Printed Fabric 2 Years  |  Clear PVC Fabric 2 Years

Resources/Certifications: Specification Sheet  |  Instructions PDF  |  Ground Fixings  |  20′ x 20′ Canopy  Artwork Template  |  NFPA-701  |  CPAI-84  |  California Title 19  |  500D PVC Coated Polyester  |  600D PU Coated Polyester

Custom Printing

custom print folding marquee
custom printing title 300px
We offer custom printing on a wide range of products. Don’t forget to checkout our available print packages!
pp1 marquees example
print package 1 diagram

Print Package 1
1 x Valance Panel Print

pp2 marquees example
print package 2 diagram

Print Package 2
4 x Valance Panel Print

pp3 marquees example
print package 3 diagram

Print Package 3
1 x Valance Panel Print
1 x Roof Panel Print

pp4 marquees example
print packages 4 diagram 01

Print Package 4
4 x Valance Panel print
4 x Roof Panel Print

Print Package 1
1 x Valance Panel Print

pp1 marquees example
print package 1 diagram

Print Package 2
4 x Valance Panel Print

pp2 marquees example
print package 2 diagram

Print Package 3
1 x Valance Panel Print
1 x Roof Panel Print

pp3 marquees example
print package 3 diagram

Print Package 4
4 x Valance Panel print
4 x Roof Panel Print

pp4 marquees example
print packages 4 diagram 01

Sublimination Printing

sublimation printing 350x200px

Sublimation printing, also known as dye sublimation printing involves the use of a digital printer to produce a print on sublimation transfer paper. The sublimation paper is then placed into a heat press with the marquee fabric and exposed to a temperature of 392 degrees Fahrenheit. The artwork is then transferred from the paper to the marquee fabric.

600D PU Coated Polyester, Fabric 245GSM, Sewn with Fabric Binding, Matte print finish.

LED-UV Printing

led uv printing 350x200px

UV printing is a form of digital printing that uses ultra-violet lights to dry or cure ink as it is printed. As the printer distributes ink on the surface of the fabric, specially designed UV lights follow close behind, “curing” or “drying” the ink instantly.

900D PU Coated Polyester, Ultra-violet light printing, Sewn with fabric binding, Clear protective seal, Print finish semi gloss.

Digital Printing

digital printing 350x200px

Large format digital printing refers to method of printing from a digital based image directly to the PVC tent material.
Once the print has dried a hot lacquer is applied to the print surface to seal the print to avoid scratches.

580gsm PVC, Large format digital printing, Heat welded seams, Hot lacquer, Print finish glossy.

Available Fabrics

grid display 500d pvc

500D PVC Coated Polyester


Available for Plain products

Specifications
100% Polyester with PVC backing
Yarn count: 500D x 500D
Weight: 280 gsm
Colorfastness to light 5-6 En

Features
1 year warranty
Waterproof
Fire, UV & Wind resistant
PVC reinforced Corners

extreme canopy fabric colours 500d poly
ec folding grid display 600d pu coated polyester

600D PU Coated Polyester

Available for Custom Printed products

Specifications
100% Polyester with PU backing
Yarn count: 600D x 600D
Weight: 245 gsm
Colorfastness to light 5-6 En

Features
1 year warranty
Fire, UV and wind resistant
Waterproof
PVC Reinforced Corners
Black or White reverse fabric

Dye Sublimation Printing

Dye sublimation printing involves the use of a digital printer to produce a print on sublimation transfer paper. The sublimation paper is then placed into a heat press with the fabric and exposed to a temperature of 392 degrees Fahrenheit. The artwork is then transferred from the paper to the fabric. The fabric has the artwork embedded in the material and the design will not scratch from the surface. The fabric has a matte finish, which photographs well and suits indoor and outdoor use.

600d pu coated polyester color option
outdoor tents option

580 GSM PVC

Available for Plain and Custom Printed products

Specifications:
100% PVC
Weight: 580 gsm
Colorfastness to light: 5-6 En standard

Features:
2 year warranty printed
5 year warranty plain
Waterproof
Fire, UV & Wind resistant
Hot lacquer welded seams

Digital Print Process

Large format digital printing refers to method of printing from a digital based image directly to the PVC material. Once the print has dried a hot lacquer is applied to the print surface to seal the print to avoid scratches.

extreme canopy fabric colours 580 gsm pvc
Vita Manzoli
Vita Manzoli
2 months ago
Great product! We ordered a customized 10x10 canopy for our rescue to use at adoption events. The colors and logo print came out perfect, the frame is sturdy, the roller base is easy to maneuver and the assembly and disassembly process is very manageable. Extremely satisfied with this purchase!
Michael Cunha
Michael Cunha
2 months ago
We bought two 10x20 X6 Velocity Canopies and one 10x10 X6, all with custom printed tops for our local union events. To say we are very pleased would be an understatement. The customer service, the communication with placing the order, the follow up emails/artwork were all done above my expectations. I would highly recommend Extreme Canopy to anyone looking for a quality pop up tent!! Dracut Firefighters Local 2586
Realtor Jacqui Knowles
Realtor Jacqui Knowles
4 months ago
Excellent service! Extreme Canopy delivered a custom 10 x 20 tent with very short notice. Between their Sales Rep (Joe Pena), Graphics Coordinator and Logistics, Extreme Canopy was professional and prompt. Our tent was absolutely perfect, high quality and very easy to set up. Most importantly, due to the diligence and responsive communication between all departments, out tent arrived just in time for our annual Lunch for Law Enforcement event, at the "Saluting Those Who Serve" University of Florida football game. Thank you again! Jacqui Knowles
Rb Liebendorfer
Rb Liebendorfer
6 months ago
Our experience has been unique. The beautiful custom canopy arrived was first set up August 3 at The Wall That Heals event here in Chillicothe MO. Sunday morning a micro burst storm hit the event and our frame was destroyed. The awesome staff at Extreme Canopy got right on shipping a replacement out in time to enjoy at our next venue, and finally get some photos of this outstanding addition to our association. Kudos folks, and understand my delay in getting a review put together.
Jennifer Ricupero
Jennifer Ricupero
5 months ago
We have thus far purchased 2 full custom canopy tents, rolling bag, and tent walls from Extreme Canopy. the quality is heavy duty and reliable. Thank you for making our non-profit stand out and stay safe!

Ready to find out more?

Videos

Video
Play Video
Video
Play Video
Video
Play Video
Video
Play Video
Video
Play Video
Video
Play Video

Choosing the right platform for outdoor branding can redefine your brand’s relationship with its audience. To this end, Extreme Canopy’s 20ft x 20ft custom printed packages, widely available across the USA, offer an ingenious fusion of utility and advertising power. Preferred by businesses, event managers, and individuals looking to amplify their visibility, these expansive canopies serve as functional shelters and potent brand promoters.

The 20ft x 20ft size presents an expansive space to host larger gatherings, extensive product exhibitions, or sprawling service areas. But these commodious canopies don’t sacrifice ease of transportation or setup for their size. Whether at a bustling trade expo, a community event, or a high-octane sports fest, these grand canopies serve as compelling visual anchors that draw crowds toward your brand.

However, Extreme Canopy’s exceptional custom printing service is the real game-changer. Harnessing advanced full-color printing technology, your canopy transforms into a vivid, unforgettable banner for your brand. Your logos, designs, or messages are reproduced in brilliant, weather-proof colors, ensuring your brand remains a visual standout, no matter the weather.

In the dynamic theater of an outdoor event, a custom printed canopy moves from a mere branding tool to a marketing imperative. It transcends its role as a shelter and becomes a vibrant billboard, broadcasting your brand’s identity to a diverse audience. Your custom printed canopy is a distinct landmark, carving a unique brand presence amidst the competition.

Further, a custom printed canopy dramatically enhances your brand recognition. Acting as a consistent, eye-catching visual at various events, it imprints your brand in attendees’ minds, fostering familiarity and strengthening your brand’s identity. This visual consistency in branding leaves a deep impression that resonates long after the event concludes.

Additionally, your custom printed canopy is an alluring backdrop for social media interactions, facilitating wider online exposure. Photos taken against your distinctly designed canopy can be shared across social networks, extending your brand’s reach and sparking digital conversations that can potentially go viral.

Investing in Extreme Canopy’s 20ft x 20ft custom printed packages entails securing more than just a robust outdoor shelter. You’re acquiring a mobile, high-impact advertising platform that amplifies your branding, broadens your visibility, and fosters deeper connections with your audience. Create a memorable brand presence, rise above the crowd, and craft unforgettable experiences with Extreme Canopy.
